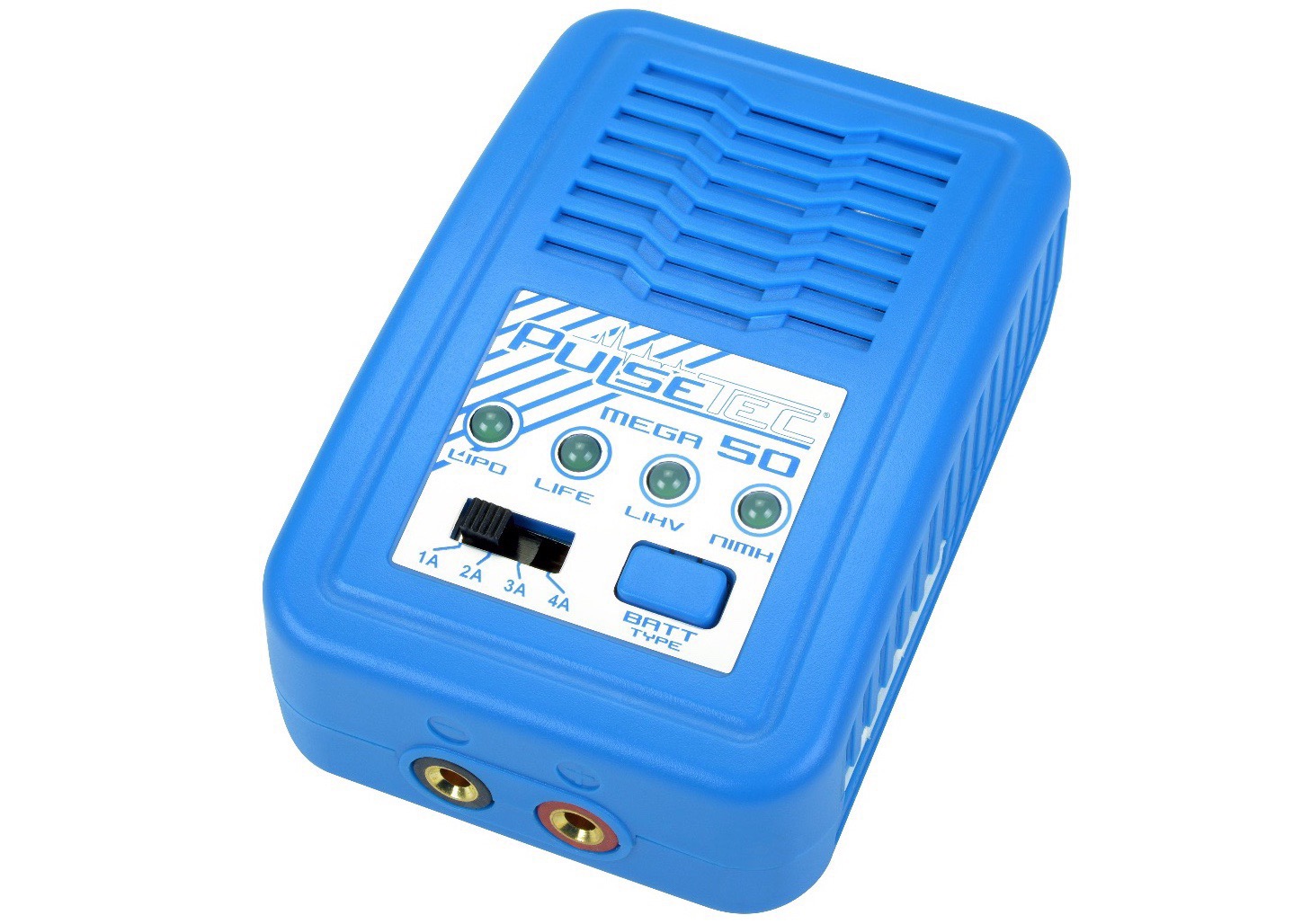

DC Charger MEGA 50

PC-019-001

The MEGA 50 AC charger is an affordable and versatile AC powered charger that can be used to charge Lithium powerpacks from 2S to 4S or NI-MH powerpacks from 6 to 8 cells. The charge current is selectable from 1 to 4A as well the battery chemistry type Li-Po, Li-Fe, Li-HV or Ni-MH. The MEGA 50 combines quality, value and performance to handle all of your charging needs. The LED indicators display the charge status, the switch selectable charge current and the 1-button start/stop make the charger operation a breeze. The strong built-in 50W charge circuit will cut your charge times drastically compared with the simple RTF/RTR overnight or wall charger standard supplied with most of the RC kits. The MEGA 50 is covered by a 24 months limited warranty.

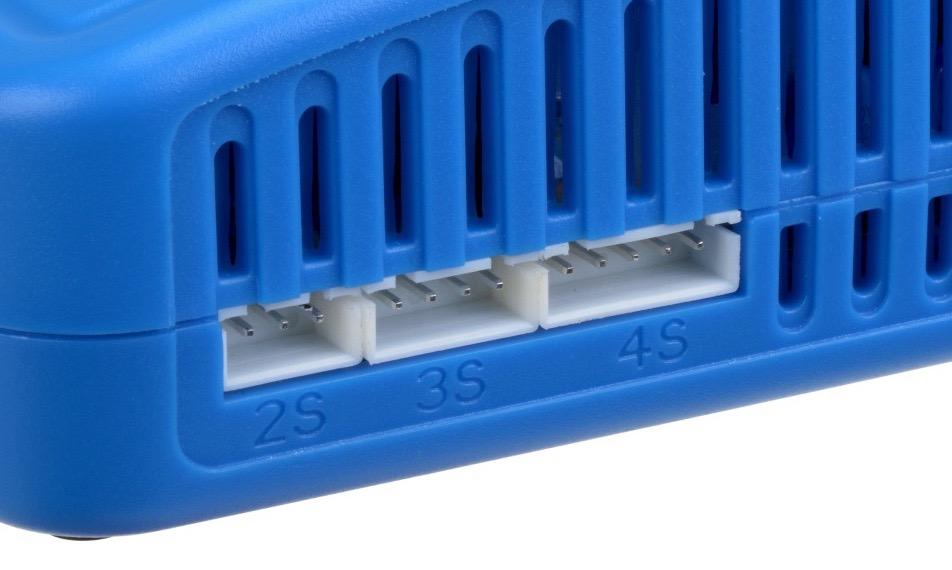

The MEGA 50 has a 2S/3S/4S cell balancing port. The balancing current drain is 300mA

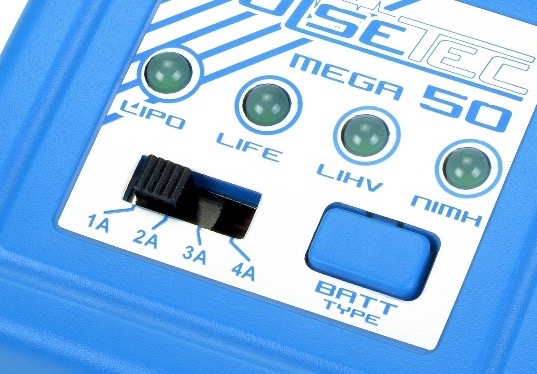

Switch selectable charge current of 1A/2A/3A/4A. Battery type push button selector

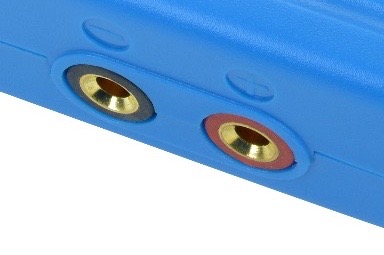

The MEGA 50 is fitted with universal 4mm sockets.

The MEGA 50 can charge Li-Po, Li-HV and Li-Fe battery types ranging from 2 up to 4S.

The MEGA 50 can charge Ni-MH batterypacks from 6 up to 8 Cells (7.2V - 9.6V)

The MEGA 50 has a 2S/3S/4S cell balancing port. The balancing current drain is 300mA

The MEGA 50 has a circuit power of 50W. The Wattage of the charge circuit determines at how much current (A) you will be able to charge your batterypack. Example: 3S = 11.1V @ 3A = 33.3Watt

Switch selectable charge current of 1A/2A/3A/4A. Easy to set the best charge current for your batterypack.

The MEGA 50 can be used all over the world. The AC input voltage ranges from 100 to 240VAC

Tech Specs

  • AC Input: 100-240
  • Battery Type: Li-Po • Li-Fe • Li-HV • Ni-MH
  • Li-xx Cell Count: 2-4S
  • Ni-MH Cell Count: 6-8 cells
  • Charge Current: Selectable 1A•2A•3A•4A
  • Circuit Power: Max. 50W
  • Current Drain for Balancing: 300mA
  • Weight: 220g
  • Size: 110x69x40mm
