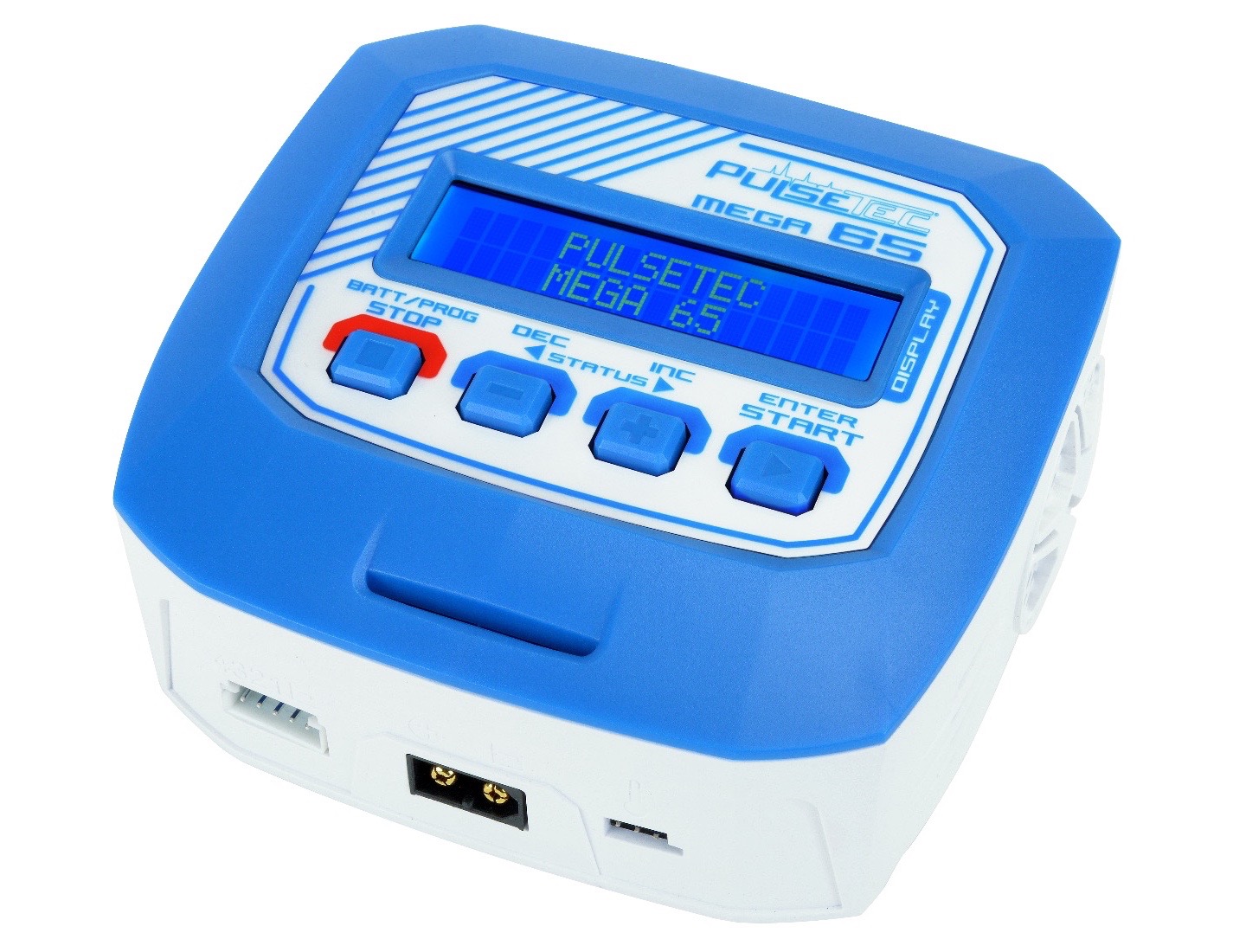

DC Charger MEGA 65

The MEGA 65 AC charger is an affordable entry level high power AC charger that can be used to charge Lithium powerpacks from 2S to 4S, NI-MH powerpacks from 6 to 8 cells and PB batteries from 6-12V. The charge current is selectable from 0.1 to 6A with a maximum charge power of 65 Watt. The MEGA 65 can charge almost all types of battery chemistry types; Li-Fe, Li-Ion, Li-Po, Li-HV, Ni-MH, Ni-Cd and PB. The LCD display provides all information to navigate through the different programs. The MEGA 65 is packed with several great features as only found in high-end battery chargers. The MEGA 65 is covered by a 24 months limited warranty.

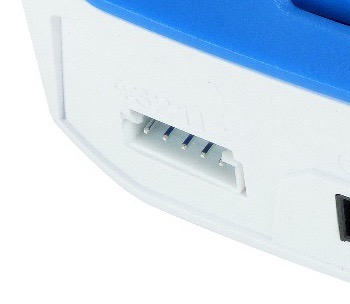

The MEGA 50 has a cell balancing port up to 4S. The balancing current drain is 300mA

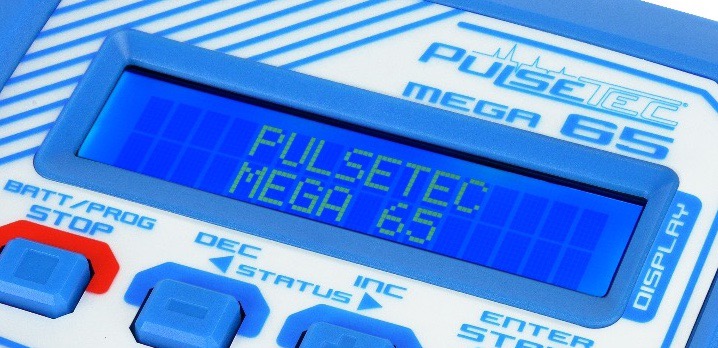

High quality backlit illuminated 2x 16 Digit LCD display.

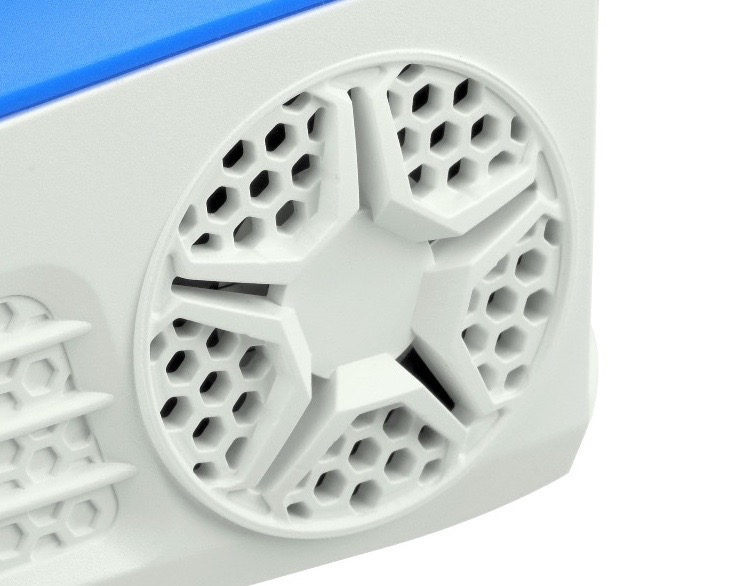

Temperature controlled 7000rpm large size high speed sleeve bearing cooling fan.

The MEGA 65 can charge Li-Ion, Li-Po, Li-HV and Li-Fe battery types ranging from 2 up to 4S.

The MEGA 65 can charge Ni-MH batterypacks from 6 up to 8 Cells (7.2V - 9.6V)

The MEGA 65 can charge PB batteriess from 3 up to 6 Cells (6V - 12V)

The MEGA 65 has a charge power of max. 65W and a discharge power of max. 10W.

The MEGA 65 charge current is adjustable from 0.1 up to 6.0A with a max. of 65W.

The MEGA 65 discharge current is adjustable from 0.1 up to 2.0A with a max. of 10W.

The MEGA 65 has a cell balancing port up to 4S. The balancing current drain is 1000mA/cell max.

The MEGA 65 has different batterypack charge, discharge and storage functions

The MEGA 65 can measure the internal resistance (IR) of your batterypack.

The MEGA 65 can measure and monitor the voltage of the individual cells during charging.

The MEGA 65 can be used all over the world. The AC input voltage ranges from 100 to 240VAC

The MEGA 65 is fitted with all maximum safety features; short circuit protection, reverse polarity protection, etc...

Tech Specs

  • AC Input: 100-240
  • Battery Type: Li-Po • Li-Ion • Li-Fe • Li-HV • Ni-MH • Ni-Cd • PB
  • Li-xx Cell Count: 2-4S
  • Ni-xx Cell Count: 6-8 cells
  • PB Cell Count: 3 - 6 cells (6-12V)
  • Charge Current: 0.1 - 6.0A
  • Max Charge Power: Max. 50W
  • Current Drain for Balancing: 1000mA/cell Max
  • Discharge Current: 0.1 - 2.0A
  • Discharge Power: Max. 10W
  • Weight: 315g
  • Size: 118x115x45mm

Downloads

  • MEGA 65 instruction manual ENGLISH
  • MEGA 65 mode d'emploi FRANCAIS
  • MEGA 65 Bedienungs Anleitung DEUTSCH
  • Pulsetec CHARGEMASTER software
